ICU-grade ventilation that travels with the patient
A 2.5 kg ventilator with its own ultra-silent turbine, so it needs no compressed air. Invasive and NIV modes for adult, paediatric and infant patients, with a hot-swappable battery that runs for more than 3 hours. Made in India.
₹1,90,000+ 5% GST per unit
Ground ambulance, air evacuation and sea transport.
- 2.5 kg280 × 120 × 210 mm, fits any vehicle
- 3+ hourshot-swappable Li-ion battery
- 6 modesinvasive and non-invasive (NIV)
- 8" touchhigh-brightness 800 × 600 screen
Built for every kind of transfer
Small enough for a stretcher or an aircraft mount, with no gas cylinder for air.
Ground transport
Ambulances, inter-hospital transfers and emergency vehicles.
Air evacuation
Air ambulance, helicopter and fixed-wing aircraft.
Sea transport
Naval vessels, coast guard and offshore medical teams.
Invasive and non-invasive, in one 2.5 kg unit
Ventilate an intubated ICU patient or support a conscious patient by mask, with the same device.
VCV
Volume control: delivers a set tidal volume every breath, even as lung compliance changes.
PCV
Pressure control: pressure-limited breaths lower the risk of barotrauma, suited to lung-protective transport.
VSIMV
Volume breaths synchronised with the patient's own effort, with spontaneous breathing in between.
PSIMV
Pressure-controlled mandatory breaths synchronised with patient effort, plus pressure support.
PCV + CPAP/PSV
Pressure support by face mask, so intubation can be avoided when it is clinically possible.
CPAP
Continuous airway pressure that supports oxygenation and reduces the work of breathing.
Made for the back of an ambulance
Its own air supply
The integrated ultra-silent turbine gives ICU-level pneumatic performance with no compressed air or external gas.
Battery you can swap mid-transfer
Lithium-ion battery runs more than 3 hours. Hot-swap it during a long transfer with no pause in ventilation.
Oxygen from a low-flow inlet
External low-pressure O₂ inlet for FiO₂ support, with no bulky high-pressure cylinder.
Light enough to carry
2.5 kg and 280 × 120 × 210 mm, with a carry handle. Fits a stretcher, an ambulance shelf or an aircraft mount.
Easy under pressure
8-inch high-brightness touch screen with a simple layout for quick changes on the move.
Alarms and live data
Airway pressure, PEEP, tidal volume and rate on screen at all times, with pressure and rate alarms.
Technical specifications
Controlled parameters
- Tidal volume
- 20–2000 ml
- Respiratory rate
- 4–120 bpm
- Inspiratory time
- 0.20–4.00 s
- Rise time (Tslope)
- 0.2–2.00 s
- Inspiratory pressure
- 1–60 cmH₂O
- Pressure support
- 0–50 cmH₂O
- PEEP
- 0–50 cmH₂O
- Flow trigger
- 0–10 L/min
- Expiratory trigger (ETS)
- 5–80%
- O₂
- Low-flow inlet
Monitoring
- Airway pressure
- −20 to +80 cmH₂O
- PEEP
- 0–50 cmH₂O
- Tidal volume
- 0–2000 ml
- Respiratory rate
- 0–120 bpm
- Waveform
- Live, real time
- Alarms
- Pressure and rate
Physical
- Dimensions
- 280 × 120 × 210 mm
- Weight
- 2.5 kg
- Screen
- 8.0" touch, 800 × 600, high brightness
- Air supply
- Integrated ultra-silent turbine
- Oxygen inlet
- External low-pressure O₂ inlet
- Patients
- Adult, paediatric, infant
Power
- External DC input
- 24 V, 5 A
- Power consumption
- 120 W
- Internal battery
- 1 × lithium-ion
- Battery life
- 3+ hours
- Charging time
- 8 hours
- Hot-swappable
- Yes
See the Cleo T8

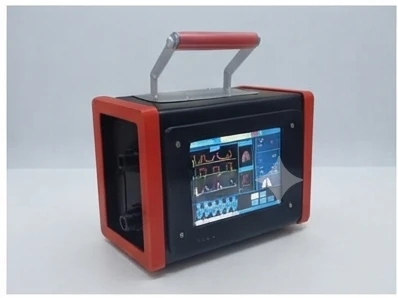

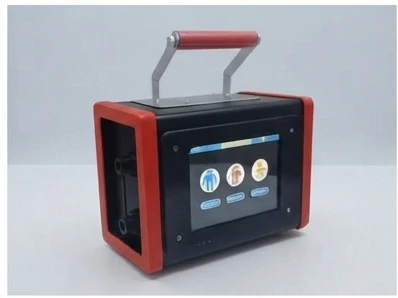

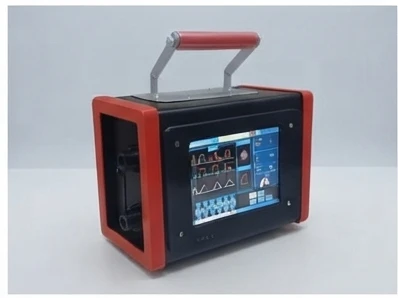

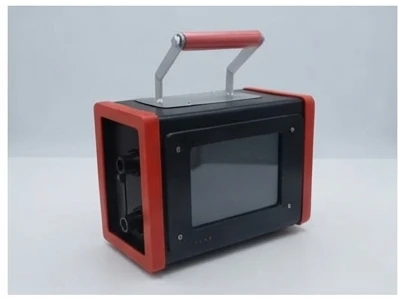

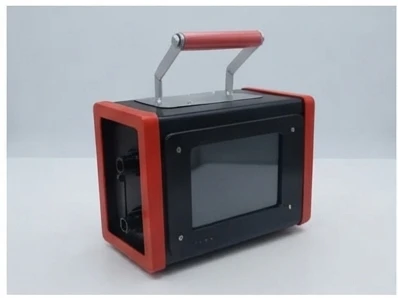

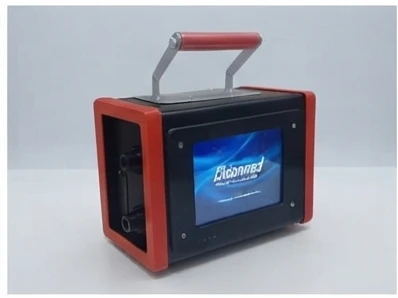

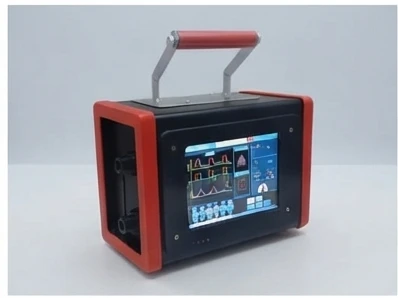

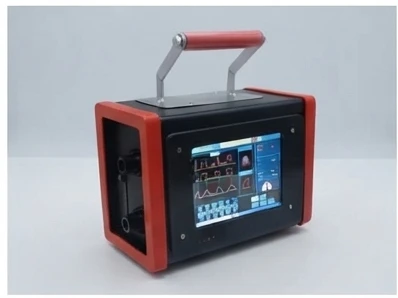

Real photos of the unit: waveform screen, patient selection and side profile.
Book a demo or get a quotation
We bring the Cleo T8 to your hospital or ambulance base and show every mode, or send you a written quotation.
- See invasive and NIV modes on a test lung
- Check it in your ambulance or transport setup
- Dedicated after-sales service team
Questions teams ask
Is delivery free?
Yes, anywhere in Maharashtra. For other states we send it by DTDC courier at the actual courier charge. The unit with its stand weighs about 25 kg.
What warranty do I get?
A 3-year warranty with on-site repair by our service engineer. We replace the machine only if the whole unit is not working and cannot be repaired.
Does it need compressed air or a compressor?
No. The Cleo T8 has an integrated ultra-silent turbine that supplies the air, so it works without wall air, a compressor or an air cylinder.
How is oxygen given?
Through an external low-pressure O₂ inlet for FiO₂ support, so you do not need a bulky high-pressure cylinder.
How long does the battery last?
More than 3 hours on the internal lithium-ion battery, which charges in 8 hours. The battery is hot-swappable, so you can change it during a long transfer without stopping ventilation. It also runs on 24 V DC.
Which modes does it have?
Invasive: VCV, PCV, VSIMV and PSIMV. Non-invasive by mask: PCV with CPAP/PSV, and CPAP.
Can it be used for children and infants?
Yes. Adult, paediatric and infant profiles are chosen on the touch screen, with tidal volume from 20 ml.
What is the price?
₹1,90,000 per unit, plus 5% GST. Send a quotation request with the quantity, or message us on WhatsApp, and we send a written quotation for your hospital or ambulance service.
What about service after purchase?
Cleonmed has a dedicated service team so every device stays in working order. Ask us about service in your city.
